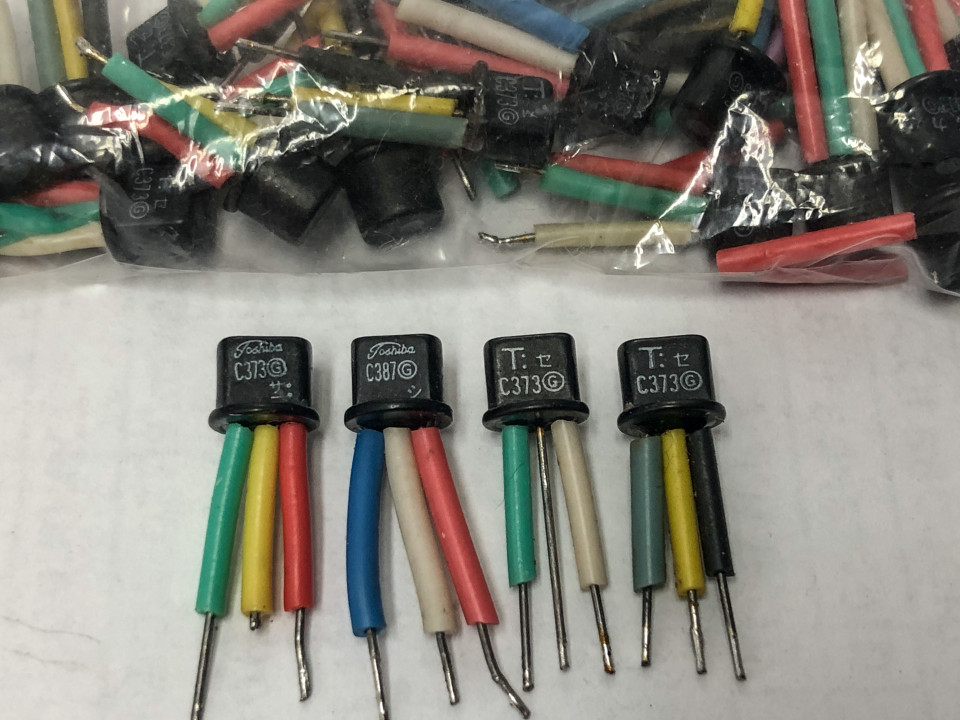

Коллекция TOSHIBA 2SC373, 2SC387

• Type Designator: TOSHIBA 2SC373
• Material of Transistor: Si
• Polarity: NPN
• Maximum Collector Power Dissipation (Pc): 0.2 W
• Maximum Collector-Base Voltage |Vcb|: 35 V
• Maximum Collector-Emitter Voltage |Vce|: 30 V
• Maximum Emitter-Base Voltage |Veb|: 44 V
• Maximum Collector Current |Ic max|: 0.1 A
• Max. Operating Junction Temperature (Tj): 125 °C
• Transition Frequency (ft): 80 MHz
• Collector Capacitance (Cc): 3.5 pF
• hFE: 200-400
• Package: TO92
